Efficiency
- Above 96% efficiency in double conversion mode
- Up to 99% efficiency with Energy Saver System
Scalability
- Scalable architecture and ‘Pay as you grow’ capability to minimise Capital Expenditure
- Paralleling of up to 4 units
Inherent redundancy
- Modular design allows internal redundancy (separate battery configuration also available)
Smallest footprint in the market

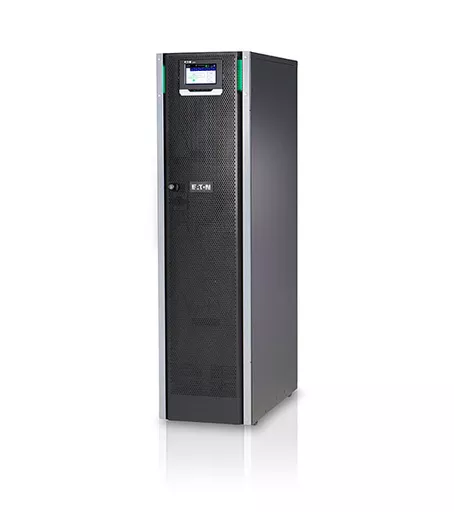

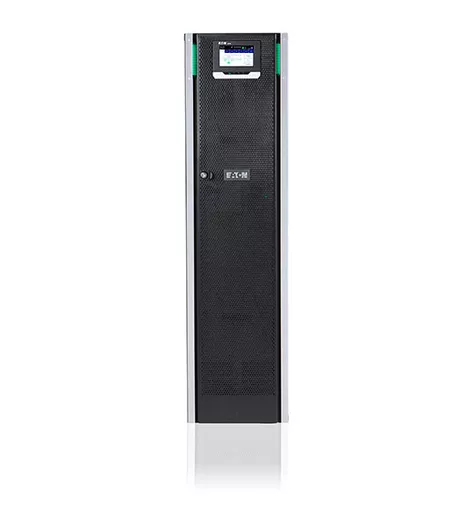

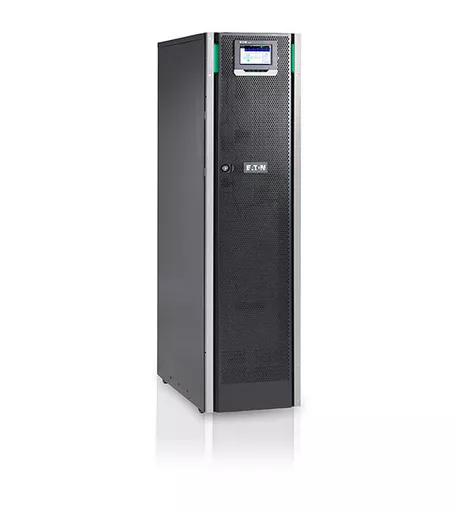

The 93PS provides significantly more in a smaller package, with a footprint of only 0.25 m² for the smaller frame (8-20 kW) and 0.36 m² for the large frame (8-40 kW)
Unity power factor (1.0)
Hot Swap and Hot Scalable

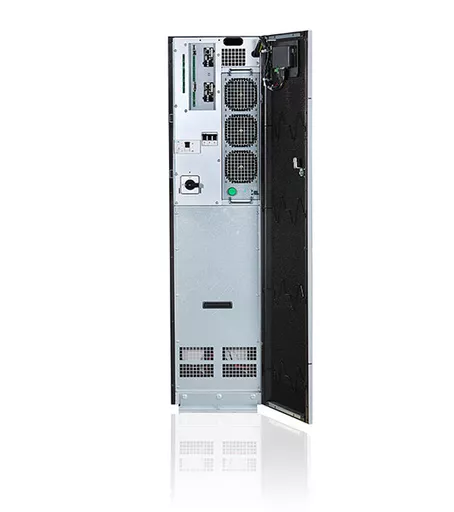

- A module can be replaced while the other continues protecting the load (concurrent maintenance)
- A module can be added while the other continues protecting the load (hot scalable)
- Individual battery strings can be serviced while other strings are supporting the load
Super-sized static switch
Optional super-sized Static Switch to enhance the selectivity of the overall electrical installation
Safety
- Equipped with an ultra-rapid fuse in the Static Switch – ensuring safety in all scenarios
- Equipped with a backfeed contactor – no need for additional installments
Cloud & Virtualisation ready
- The 93PS and Eaton’s Intelligent Power Manager software suite takes the resiliency of the system to the next level by bridging the electrical and IT infrastructure
- IT and electrical infrastructure management from a “Single pane of glass”
- Load shedding – 50% drop in load equates to 250% more runtime!
