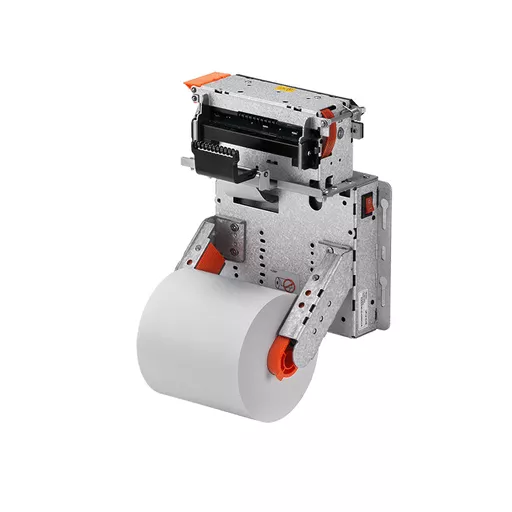

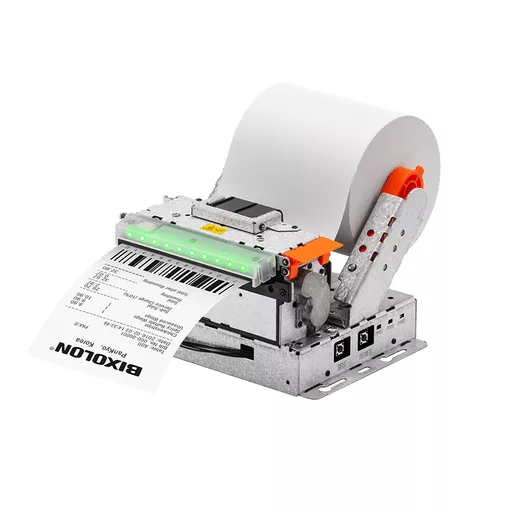

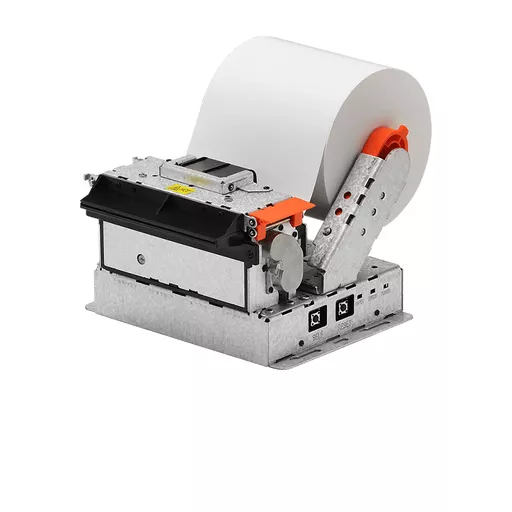

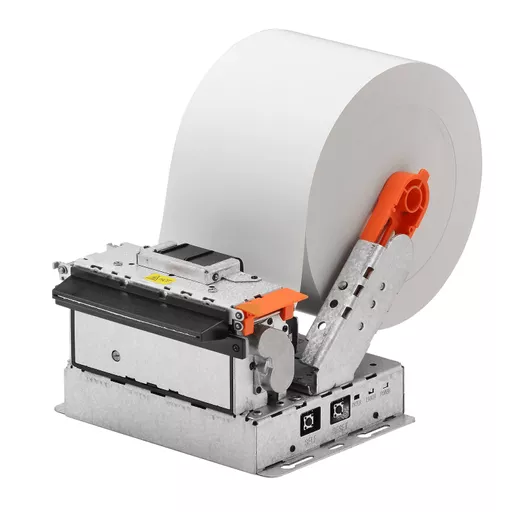

3-inch (up to 80mm) open frame kiosk printing mechanism
A compact, flexible and highly reliable 3-inch (up to 80mm) open frame kiosk printing mechanism. Designed for standalone self-service kiosk installations, the BK3-31 direct thermal printer operates at print speeds up to 250mm per second with 203dpi resolution to produce high quality text, graphics and barcodes. Presenting a larger paper roll capacity than traditional packaged kiosk printers, the BK3-31 support media roll diameters of 80 / 102 / 120mm and various media widths of 83 / 80 / 60 / 58 / 20mm for a range of printing applications from wider lottery ticketing to narrow token printing. The kiosk printer also provides a paper saving mode through BIXOLON’s simple Unified Utility reducing paper wastage resulting in paper savings up to 25% and decreased CO2 emissions.
With compact, lightweight design the BK3-31 kiosk printer supports a range of kiosk mounting options to provide design flexibility for the kiosk builder. With seamless paper feeding with additional roller-tension, multi-position near end sensor for easy monitoring of the paper, removable bezels and an adjustable media width frame the printing mechanism can be personalised for a range of kiosk designs. The kiosk printing mechanism also has a USB V2.0 and Serial (9 pin male or 5 pin connector) with a DC Jack or 2 pin power connector connectivity as standard.
Supported by BIXOLON’s wide range of drivers, utilities and SDKs, the BK3-31 is compatible with Windows® major OS system and OPOS-based systems from Android™, Windows® and Linux™ for smart based devices. Supporting by an industry leading 2 year warranty as standard.
