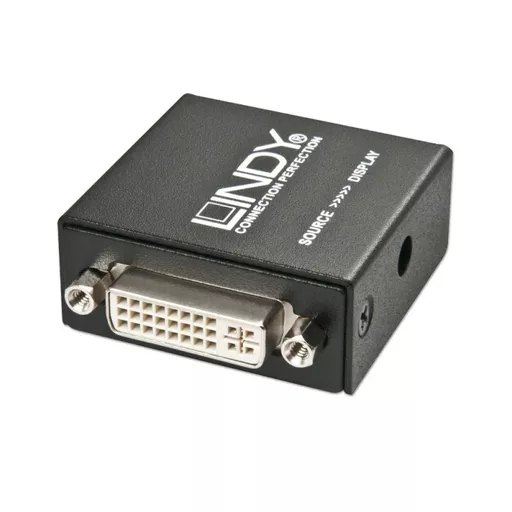

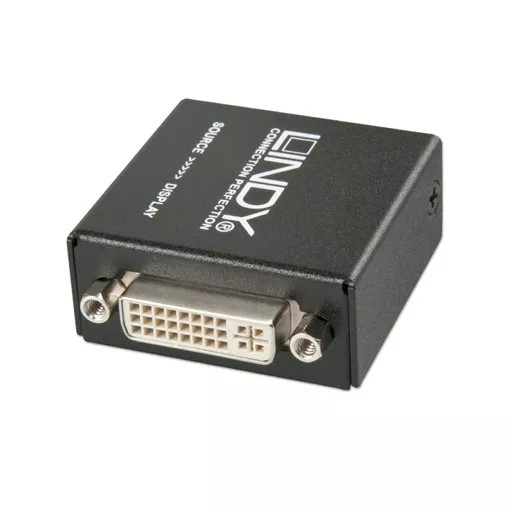

The Lindy 45m DVI-D Dual Link Repeater can be used to extend high quality DVI digital signals up to distances of 45m, with no image degradation. This repeater supports a maximum resolution of 2560x1600@60Hz for high quality video playback.

Featuring a sleek compact design and a simple, efficient installation process, the repeater is ideal for use with professional AV/IT setups that require flexible longer length transmissions with no compromise on video performance. The female DVI-D ports are also perfect for connecting DVI source devices such as graphics cards to DVI displays and projectors.

An optional 5V DC PSU (2.5mm Inner/5.5mm outer diameter) can be used when the source device cannot supply a sufficiently high quality, DVI signal.

Graphics Cards and Cable Connection Information



Graphics chipset Maximum cable length in / out NVIDIA Quadro FX580 25m / 20m NVIDEA board (supermarket PC) 25m / 15m AMD Radeon HD 6790 10m / 10m ATI Radeon HD 4850 10m / 20m
